MICHELIN ROADBIB
The solution for heavy road use (>80% hours on the road)
- Road Transport
- Field Work
- High Horsepower Tractor
logo comfort tyre
EXCELLENT COMFORT
• Smooth central rib improves comfort on roads.
• Reduced space between tread blocks (compared to traditional sculptures) limits cabin vibrations.
• Quiet running tyre.
logo service life tyre
LONG LIFE
• Extrordinary longevity thanks to an exclusive design (tread and compound).
• Directional tyre.
logo fuel savings
FUEL SAVINGS
• A wide footprint combined with an optimised tread depth provides low rolling resistance and thus reduced fuel consumption.
logo road handling tyre
HANDLING AND SAFETY
• Improved ride quality thanks to a new sculpture similar to that of a truck tyre.
• Good tyre adhesion on wet roads thanks to vertical evacuation paths.

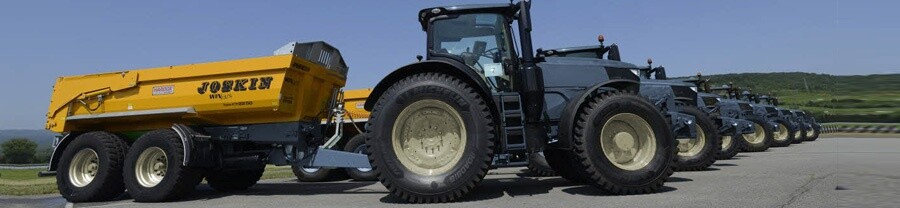

Edito photo roadbib in action Tyre
RELATED SERVICES AND SOLUTIONS
Technical Specifications
| Product | MICHELIN ROADBIB - 540/65R30 |
|---|---|
| Overall Diameter | 58 inch |
| Recommended rims | DW16Lx30 |
| Approved rims | W18Lx30 |
| Rolling circumference (mm) | 172 inch |
| Filling volume 75% (lts) | 331.5 l / 88 gal |
| Tread depth | 1.3 inch |
| Section Width | 22 inch |
| Min Dual Spacing | 27.99 inch |
| CAI | 274757 |
Pressures (bar and psi) & Loads (kg and lbs)
|
bar psi |
0.4 6 |
0.6 9 |
0.8 12 |
1 15 |
1.2 17 |
1.4 20 |
1.6 23 |
1.8 26 |
2 29 |
2.2 32 |
2.4 35 |
2.6 38 |
2.8 41 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) | |||||||||||||
|
10 km/h 6 mph |
1930 4255 |
2186.6667480469 4821 |
2443.3332519531 5387 |
2700 5952 |
3000 6614 |
3300 7275 |
3600 7937 |
3900 8598 |
4200 9259 |
4406.25 9714 |
4612.5 10169 |
4818.75 10624 |
5025 11078 |
|
30 km/h 19 mph |
1480 3263 |
1755.8333740234 3871 |
2031.6666259766 4479 |
2307.5 5087 |
2583.3332519531 5695 |
2859.1667480469 6303 |
3135 6911 |
3315 7308 |
3495 7705 |
3675 8102 |
3855 8499 |
||
|
40 km/h 25 mph |
1695 3737 |
1953 4306 |
2211 4874 |
2469 5443 |
2727 6012 |
2985 6581 |
3156.25 6958 |
3327.5 7336 |
3498.75 7713 |
3670 8091 |
|||
|
50 km/h 31 mph |
1630 3594 |
1876 4136 |
2122 4678 |
2368 5221 |
2614 5763 |
2860 6305 |
3025 6669 |
3190 7033 |
3355 7397 |
3520 7760 |
|||
|
65 km/h 40 mph |
1800 3968 |
2031.25 4478 |
2262.5 4988 |
2493.75 5498 |
2725 6008 |
2881.25 6352 |
3037.5 6697 |
3193.75 7041 |
3350 7385 |
||||
|
70 km/h 43 mph |
1640 3616 |
1850 4079 |
2060 4542 |
2270 5004 |
2480 5467 |
2610 5754 |
2740 6041 |
2870 6327 |
3000 6614 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
