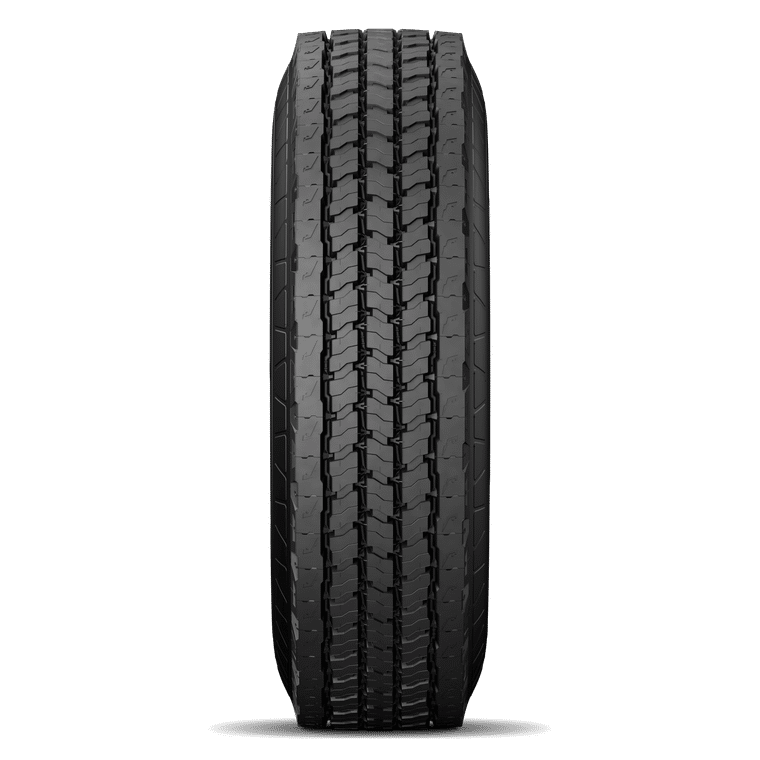

MICHELIN X-CRANE 2
Designed for safety, built for efficiency
MICHELIN mobile crane tyres designed to answer your safety and efficiency needs
MICHELIN X-CRANE 2: safety
SAFETY
Up to +50% enhanced casing endurance (1)
Thanks to an increased bead zone including Duracoil (2) technology that helps the casing to last longer
MICHELIN X-CRANE 2: productivity
PRODUCTIVITY
Up to +8% load capacity & J speed index (up to 100 km/h)(3)
Provided by a new casing structure and a better thermal tyre performance reducing downtime
MICHELIN X CRANE 2: traction
TRACTION
Improve traction on unmaintained work surfaces
New sculpture inspired from MICHELIN truck tyre design with M+S and 3PMSF markings
Technical Specifications
| Product | MICHELIN X-CRANE 2 - 445/75R22.5 |
|---|---|
| Overall Diameter | 49 inch |
| Recommended rims | 14.00x22.5 |
| Rolling circumference (mm) | 179 inch |
| Filling volume 100% (lts) | 294 l / 78 gal |
| Tread depth | 0.6 inch |
| CAI | 763336 |
| Section width | 18 inch |
| Load Index | 173 |
| Speed Index | J |
Pressures (bar and psi) & Loads (kg and lbs)
|
bar psi |
4 58 |
5 73 |
6 87 |
7 102 |
8 116 |
9 131 |
|---|---|---|---|---|---|---|
| (kg - lbs) Cranes and Similar Specialized Machines | ||||||
|
0 km/h 0 mph |
5700 12566 |
7000 15432 |
8100 17857 |
9200 20283 |
10300 22708 |
11300 24912 |
|
5 km/h 3 mph |
5100 11244 |
6200 13669 |
7300 16094 |
8300 18298 |
9300 20503 |
10200 22487 |
|
10 km/h 6 mph |
4400 9700 |
5400 11905 |
6400 14110 |
7300 16094 |
8200 18078 |
9100 20062 |
|
20 km/h 12 mph |
4000 8818 |
4800 10582 |
5700 12566 |
6500 14330 |
7300 16094 |
8100 17857 |
|
30 km/h 19 mph |
3500 7716 |
4300 9480 |
5000 11023 |
5800 12787 |
6500 14330 |
7200 15873 |
|
40 km/h 25 mph |
3300 7275 |
4000 8818 |
4700 10362 |
5400 11905 |
6100 13448 |
6700 14771 |
|
50 km/h 31 mph |
3200 7055 |
3900 8598 |
4600 10141 |
5300 11684 |
6000 13228 |
6600 14551 |
|
60 km/h 37 mph |
3200 7055 |
3900 8598 |
4600 10141 |
5300 11684 |
6000 13228 |
6600 14551 |
|
70 km/h 43 mph |
3200 7055 |
3900 8598 |
4600 10141 |
5300 11684 |
6000 13228 |
6600 14551 |
|
80 km/h 50 mph |
3100 6834 |
3800 8378 |
4500 9921 |
5100 11244 |
5700 12566 |
6500 14330 |
|
90 km/h 56 mph |
3100 6834 |
3800 8378 |
4500 9921 |
5100 11244 |
5700 12566 |
6500 14330 |
|
100 km/h 62 mph |
3100 6834 |
3800 8378 |
4500 9921 |
5100 11244 |
5700 12566 |
6500 14330 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
