Off road operation
Beadlock system: a must have for your off-road usage
The beadlock mechanism is a specialised design used in off-road and high-performance tyres to secure the tyre bead to the rim. This system prevents the tyre from slipping off the rim, particularly in low-pressure applications common in off-road and rough terrain.

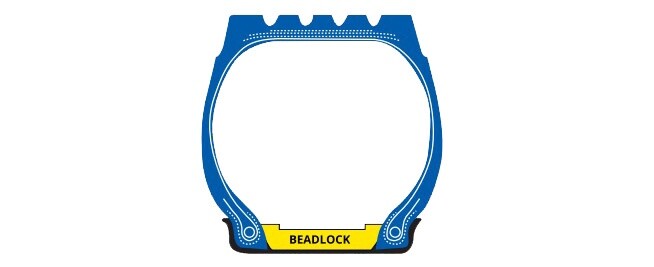

What is a beadlock system?
Beadlock system
A beadlock is a mechanical device that secures the bead of a tyre to the wheel of a vehicle. Most modern beadlocks and runflats are designed as separate internal inserts and are not directly integrated into the wheel or tyre.
The different types of off-road beadlock systems:
- Traditional beadlock rims: they rely on a locking ring that bolts onto the bead from the outside.
- Internal bead inserts: to hold the bead in place, they are a perfectly sized spacer that completely fills the inner gap between each bead on the tyre.
Why use a beadlock system?
Beyond preventing tyre dismounting, beadlock system also feature an outer ring that enhances traction, increases stability, and improves durability for off-road vehicles:
Safety
Beadlock system enhance safety by securely holding the tyre bead in place even at low pressures, preventing dismounting and reducing the risk of blowouts during extreme driving conditions.
Traction
Specialized beadlock system allow for low tyre pressure, which increases the contact patch with the ground, resulting in better grip on off-road surfaces such as mud, sand, and rocks.
Versatility
Beadlock systems are typically built to withstand the harsh conditions of off-road environments, providing greater durability and longevity compared to standard wheels.
Tyre stability
The beadlock mechanism offers greater stability and control on uneven terrain. It reduces the risk of tyre roll, which can occur in aggressive cornering or off-camber situations.
How do beadlock systems work?
Beadlocks are designed to securely attach the bead of a tyre to a vehicle's wheel. When the tyre is inflated, the internal pressure pushes the bead against the wheel rim, ensuring a tight fit that allows both the tyre and wheel to rotate together. For optimal performance, especially in off-road conditions, a beadlock is essential when operating at low pressures (15 PSI or below), as it prevents the tyre from dismounting from the rim. The beadlock mechanism holds the tyre beads firmly against the rim, enhancing both stability and performance.
Which vehicles are compatible with beadlock systems?
Beadlock systems can be equipped on a variety of vehicles designed for off-road use and rugged terrain. Discover some common types of vehicles that may benefit from beadlock systems:
- Military Vehicles: Some military vehicles designed for off-road capabilities may utilise beadlock systems for enhanced performance in various environments.
- ATVs and UTVs: All-terrain and utility task vehicles often use ATV beadlock systems for better traction and reliability on challenging surfaces.
- Off-Road Trucks: Vehicles designed for tough terrains, such as rock crawlers and desert trucks, often utilize beadlock systems for enhanced performance.
- Jeep: Many Jeep used for off-roading can be fitted with beadlock systems to improve stability and tyre retention.
- Race Vehicles: Off-road race vehicles, including those used in competitions, commonly equip beadlock systems for better handling at lower pressures.
How to install a beadlock systems?
It is essential to consult a professional for the installation of a beadlock system, as they possess the expertise and necessary tools to ensure a correct and secure installation. Professionals are trained to diagnose potential issues, ensure that the wheels are correctly balanced and comply with the manufacturer's specifications. As part of the beadlock installation process, please refer to your supplier.
Frequently Asked Questions (FAQs): Beadlock information
For precise balancing of beadlock wheels, it is recommended to consult a professional tyre specialist. They have the necessary tools and expertise to ensure accurate balancing and optimal performance.
Beadlocks are designed to keep the tyre bead safely attached to the rim, allowing for lower pressures suitable for off-road use.
Regular wheels depend on higher tyre pressure to maintain the bead's position and are typically used for standard driving conditions. A beadlock system could be added to drive at low pressure.
Beadlock systems do not prevent to drive with higher pressure and so could be used on regular basis.
